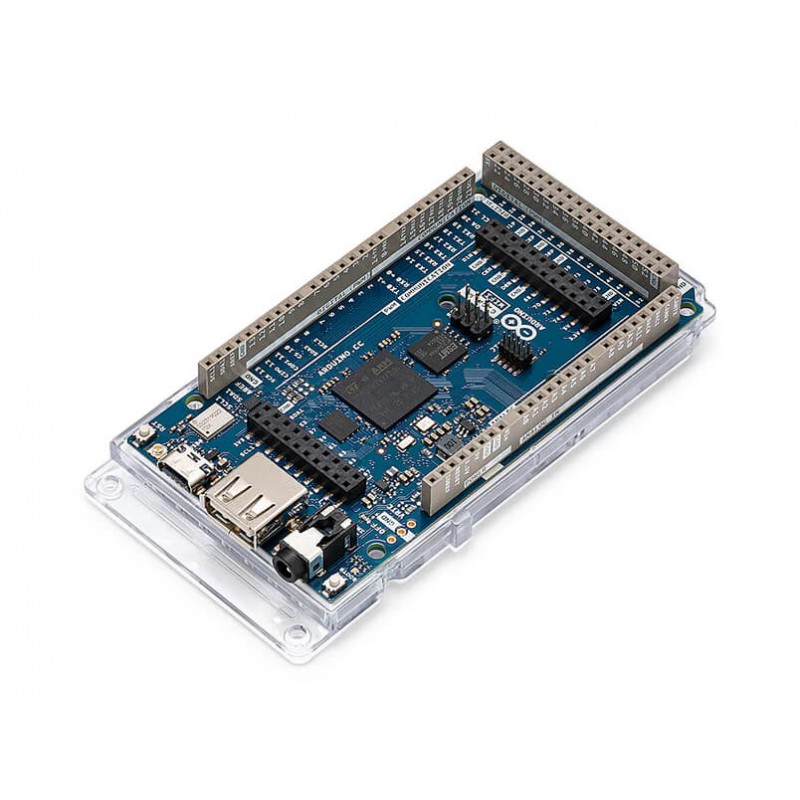

Arduino GIGA R1 WiFi

€77.90
Tax included

The GIGA R1 board offers advanced processing power, a wide range of input/output pins, and built-in display compatibility, making it perfect for creating interactive projects. Its robust performance allows educators to teach key concepts like IoT, robotics, and real-time data visualization. The board’s ability to handle complex tasks, along with its user-friendly ecosystem, makes it suitable for both beginners and advanced learners, expanding opportunities in STEM education.

Equipped with a high-performance dual-core microcontroller and integrated Wi-Fi/Bluetooth connectivity, the GIGA R1 is ideal for projects such as robotics, data analysis, and smart systems. Its versatility makes it an excellent tool for classrooms, enabling students to explore real-world applications and fostering innovation and hands-on learning in STEM fields.

Quantity

The Arduino GIGA R1 WiFi is definitely the best board for ambitious makers with bigger ideas. Connect it to the Arduino GIGA Display Shield and tap into the full potential of your next project with a 3.97” 480x800 RGB touch screen, including a digital microphone, a 6-axis IMU and an Arducam® connector

Tech specs

Microcontroller STM32H747XI dual Cortex®-M7+M4 32bit low power Arm® MCU (datasheet)

Radio Module Murata 1DX dual WiFi 802.11b/g/n 65 Mbps and Bluetooth® (datasheet)

Secure Element ATECC608A-MAHDA-T (datasheet)

USB USB-C® Programming Port / HID; USB-A Host (enable with PA_15)

Pins

  • Digital I/O Pins 76
  • Analog input pins 12
  • DAC 2 (DAC0/DAC1)
  • PWM pins 12
  • Misc VRT & OFF pin

Communication

  • UART Yes, 4x
  • I2C Yes, 3x
  • SPI Yes, 2x
  • CAN Yes (Requires an external transceiver)

Connectors

  • Camera I2C + D54-D67
  • Display D1N, D0N, D1P, D0P, CKN, CKP + D68-D75
  • Audio Jack DAC0, DAC1, A7

Power

  • Circuit operating voltage 3.3V
  • Input voltage (VIN) 6-24V
  • DC Current per I/O Pin 8 mA

Clock Speed Cortex® M7 480 MHz;  Cortex® M4 240 MHz

Memory STM32H747XI 2MB Flash, 1MB RAM

Dimensions 53 x 101 mm

ABX00063

Data sheet

School Stage
Technical and Vocational Training
For
Makerspace
School
Subject
IoT
Robotics
Product Category
Microcontroller

Specific References
