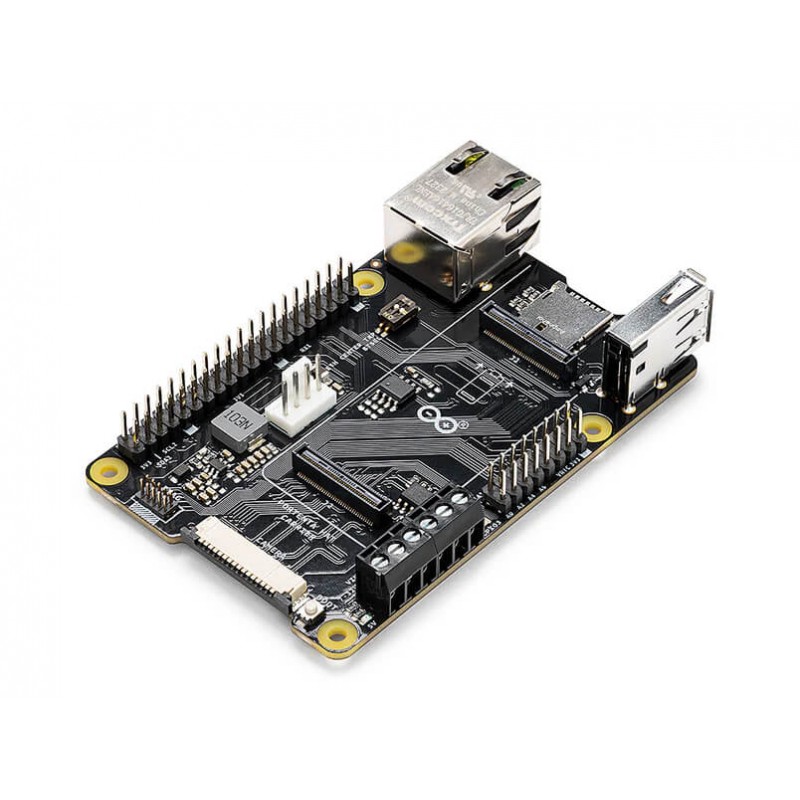

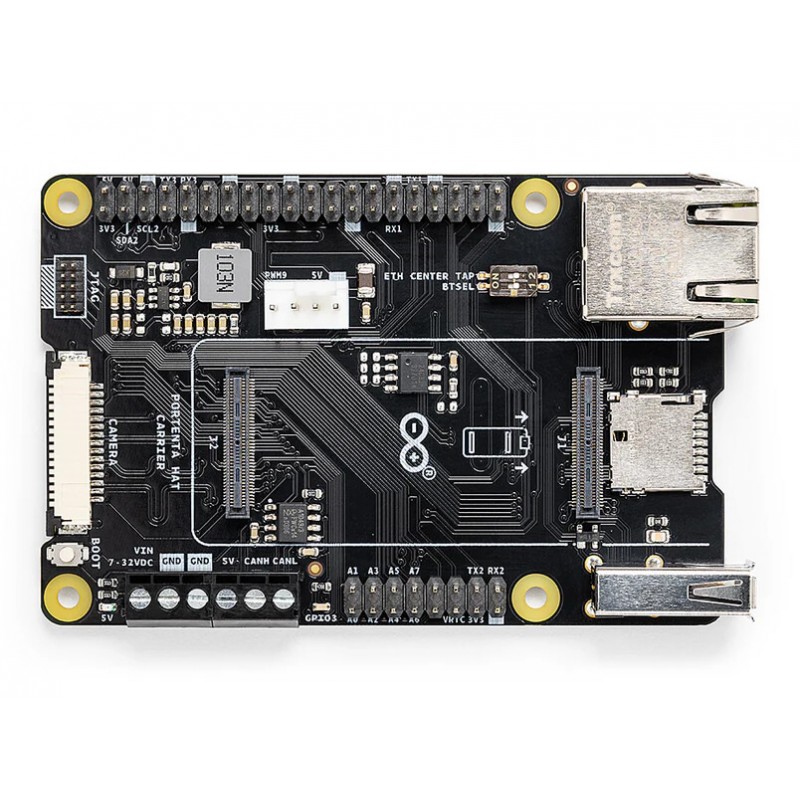

Arduino Portenta Hat Carrier
Portenta Hat Carrier is a reliable and robust carrier that transforms Portenta X8 into an industrial single board computer compatible with Raspberry Pi® Hats and cameras. Ready for multiple industrial applications such as building automation and machine monitoring.
Compatible also with Portenta H7 and Portenta C33, Portenta Hat Carrier provides easy access to multiple peripherals – including CAN, Ethernet, microSD and USB – and further extends any Portenta application.
Great for prototyping and ready for scaling up, it extends the features found on a typical Raspberry Pi® Model B. Debug quickly with dedicated JTAG pins and keeps heat manageable under intense workloads with a PWM fan connector. Control actuators or read analog sensors via the additional 16x analog I/Os. Add industrial machine vision solutions to any project by leveraging the onboard camera connector.
Portenta takes you from prototype to high-performance
Portenta Hat Carrier offers you a frictionless Linux prototyping experience and unlocks the ability for integrated real-time MCU solutions. Portenta Hat Carrier extends Portenta SOMs for faster, easier and more efficient testing for your ideas while also ensuring the capabilities and industrial-grade performances the Portenta range is known for. Reliable, accessible and open to infinite combinations with add-ons from both the Arduino and Raspberry Pi® ecosystems, it’s the carrier that will carry you away with its flexibility.
Extend the Raspberry Pi® ecosystem for commercial applications
Combine the ease of use, accessibility and incredible support from both the Arduino and Raspberry Pi® communities for your next project with the carrier designed to combine and extend MPU and MCU applications for the development of advanced commercial solutions.
Connectors
- High-density connectors compatible with Portenta products
- 1x USB-A female connector
- 1x Gigabit Ethernet connector (RJ45)
- 1x CAN FD with onboard transceiver
- 1x MIPI Camera connector
- 1x MicroSD card slot
- 1x PWM fan connector
- 40 pin header connector allowing compatibility with Raspberry Pi Hats
- 16 pin analog header connectors, including:
- 8x analog inputs
- 1x GPIO
- 1xUART without flow control
- 2x PWM pins
- 1x LICELL pin for Portenta's RTC power
Interfaces
- CAN FD
- UART
- SAI
- ANALOG
- GPIO
- SPI
- I2C
- I2S
- PWM
Operating temperatures -40° C to +85° C (-40° F to 185 °F)
Dimensions 85 mm x 56 mm (3.35 in x 2.6 in)
Debugging Onboard 10x pin 1.27mm JTAG connector
Power
- From onboard screw terminal block allowing:
- 7-32V power supply, powering both the carrier and the connected Portenta
- 5V power supply
- From USB-C on Portenta
- From 5V on 40 pin header connector
