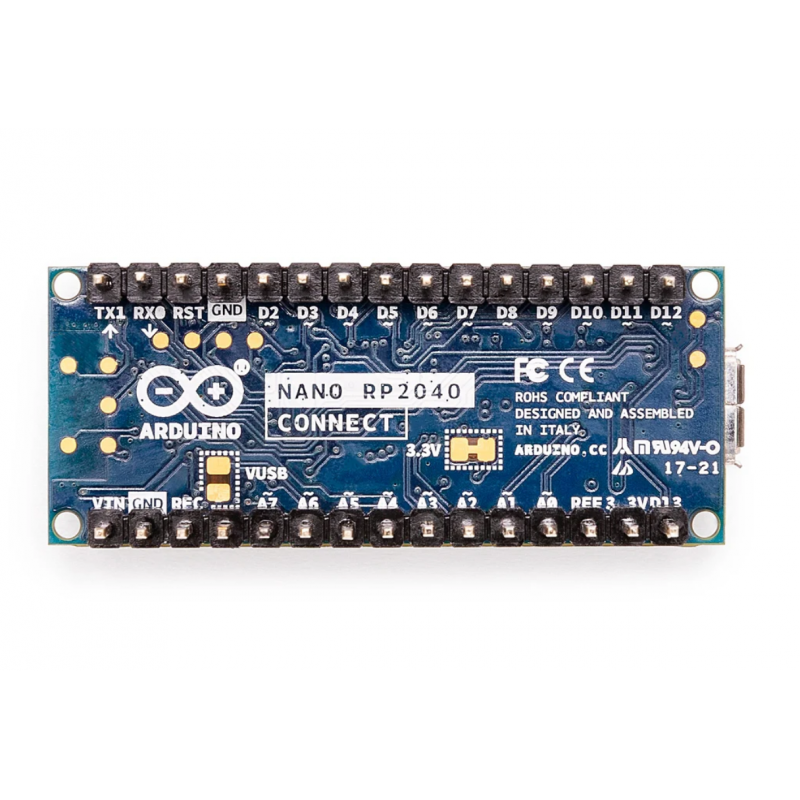

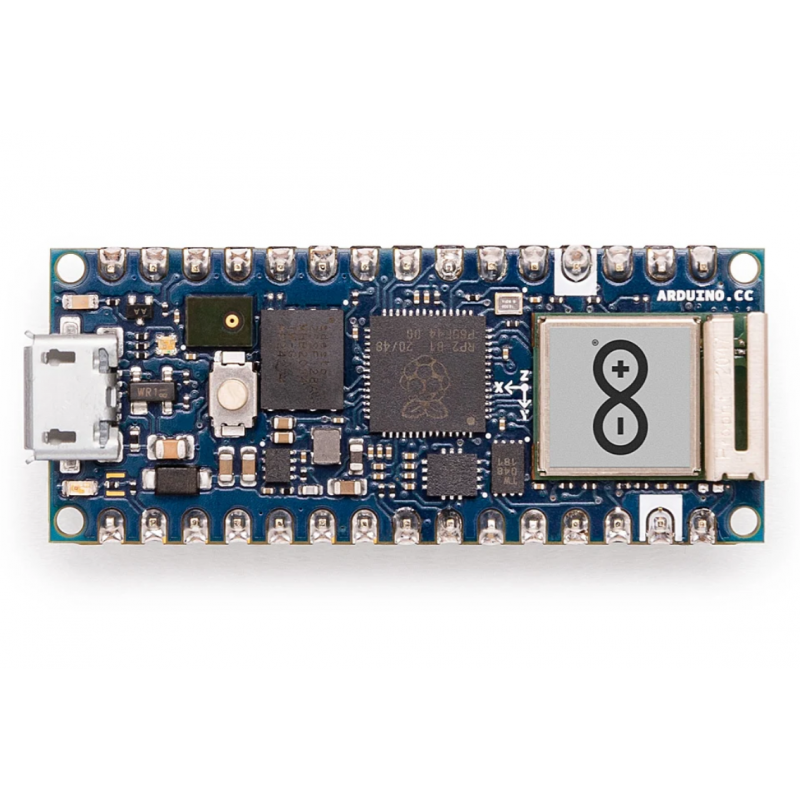

Arduino Nano RP2040 Connect with headers

Meet the only connected RP2040 board. It fits the Arduino Nano form factor, making it a small board with BIG features.

The brain of the board is the Raspberry Pi® RP2040 silicon; a dual-core ARM® Cortex®

M0+ running at 133MHz. It has 264KB of SRAM, and the 16MB of flash memory is off-chip to give you extra storage.

But what’s really exciting is the on-board connectivity options. The hugely popular and highly adaptable u-blox NINA-W102 radio module is on there to make this a true IoT champion. This also means you can harness the power of the cloud, with fully Arduino Cloud compatibility.

It features on-board, built-in sensors to turn your builds into powerhouse projects, too. Microphone and motion sensing add a depth of possibilities that’s almost impossible to find in a board of this size.

The Arduino Nano RP2040 Connect is the premium choice for RP2040 devices, and the perfect option for upgrading your projects and unlocking the potential of new ones.

Tech specs

Microcontroller Raspberry Pi® RP2040

USB connector Micro USB

Pins

• Built-in LED pin 13
• Digital I/O Pins 20
• Analog Input Pins 8
• PWM pins 20 (Except A6, A7)
• External interrupts 20 (Except A6, A7)

Connectivity Wi-Fi Nina W102 uBlox module

Bluetooth® Nina W102 uBlox module

Secure element ATECC608A-MAHDA-T Crypto IC

Sensors

IMU  LSM6DSOXTR (6-axis)

Microphone MP3DT06JTR

Communication

UART Yes

I2C Yes

SPI Yes

Power

Circuit operating voltage 3.3V

Input Voltage (VIN) 4-20V

DC Current per I/O pin 8 mA

Clock speed

Processor 133 MHz

Memory

AT25SF128A-MHB-T  16MB Flash IC

Nina W102 uBlox module 448 KB ROM, 520KB SRAM, 16MB Flash

Dimensions 18x 45 mm

Weight 6 g
